TX-1200
TX-1200 Pinion P1.18-speed / Disc / Gates
  • Diamant 27,5" / 52 cm
    27,5" / 57 cm
    27,5" / 62 cm
Standard colour *:
ebony matt
Colour options (extra charge)*:
Price (incl. Vat.) 4,399.90 €
Händler finden » Compare »

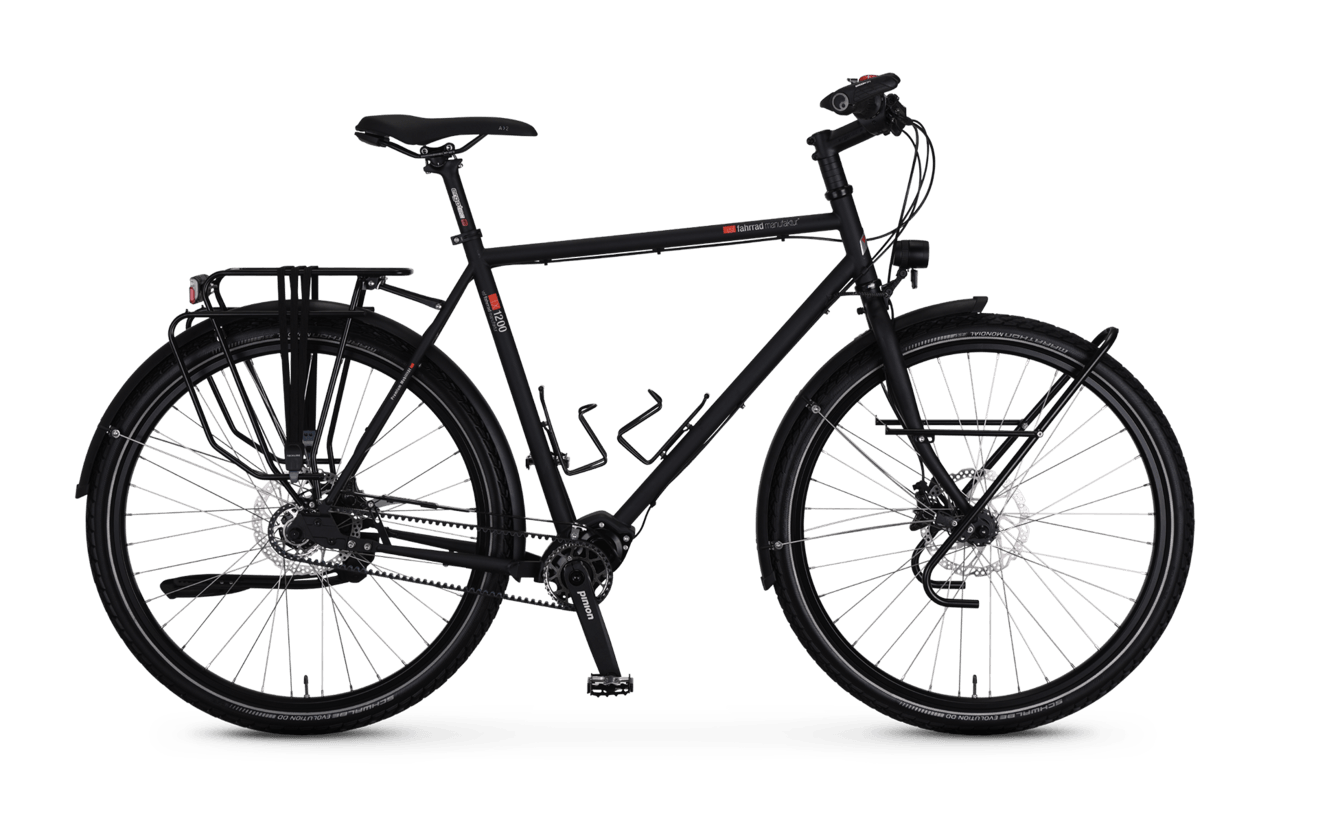

TX-1200

Pinion P1.18-speed / Disc / Gates

For anyone looking for great adventure, we have equipped the TX-1200 with a virtually maintenance-free and exceptionally durable drive combination of Gates belt drive and Pinion P1.18 shifter, making for a truly excellent combination. That is also how VSF (Verbund Service und Fahrrad e. V.) sees it - they have awarded Pinion's gearboxes with two test seals:



In further development, the TX-1200 was optimised with 27.5" wheels and a hydraulic disc brake.



In combination with a steel frame handcrafted in proven manufacturing quality, along with high-quality, tried and tested components, we offer globetrotters an expedition bike that sets new standards in terms of reliability, load capacity, cycling characteristics, and comfort. Discover for yourself the unique features of this exemplary model from vsf fahrradmanufaktur. You will also find more information on our TX-1200 special page.



The TX-1200, powered by Pinion. At home on the road.



In addition to the standard colors, this model is available in other special colors for an additional fee. More detailed information about the costs of color customisation is available from your dealer.



You can find all the information about our color world here.



* Actual product colours may differ for technical reasons.

Specs

Framesize
Diamant 27,5": 52, 57, 62 cm
Frame
25 CrMo 4, double butted, Disc, with Pinion-Interface
max load
170 kg
Colour
ebony matt
Head set
Ritchey Comp Logic V2
Fork
25CrMo 4 fork,
Shifting System
Pinion P1.18
Derailleur
N.V.
Brakes
Shimano Deore XT BR-M8000 (front 180 mm / rear 160 mm) disc break
Headlights
Busch & Müller Lumotec IQ-X, 100 LUX including standinglight
Rear light
Busch & Müller Line LED, including standinglight
Carriers
Tubus Logo Evo / Tubus Tara Lowrider
Saddle
Selle Royal Scientia
Seat post
Humpert Ergotec Skalar, patent, aluminum, 27,2 mm, 400 mm, safety level 6
Pedals
VP-196 aluminum
Kickstand
Pletscher Comp Zoom, rear kickstand
Chainguard
Hebie chainbar for Pinion
Mudguard
SKS A56, plastic
Weight
17,9 kg
Stem
Humpert Ergotec Piranha 2, 31,8 mm, safety level 6
Handlebars
Humpert Ergotec Trekking, aluminum , 620 mm, safety level 6
Grips
Ergon GP3, with clamp
Shift lever
Pinion DS2.18, twist shifter
Brake lever
Shimano Deore XT BL-T8000
Tires
Schwalbe Marathon Mondial, 50-584, reflex
Spokes
Niro ED 2,34 mm
Front Hub
Shutter Precission PL-8, hub dynamo
Rear Hub
Pinion H2.R
Sprocket
Gates CDX, 26 teeth
Chain
Gates CDX belt drive
Inner bearing
Pinion P1.18
Crank wheel set
Pinion aluminum, 170 mm, with Gates CDX 32 teeth
Gear ratio (front:rear)
front 32, rear: 26
Show all specs + Show less specs Product data sheet
