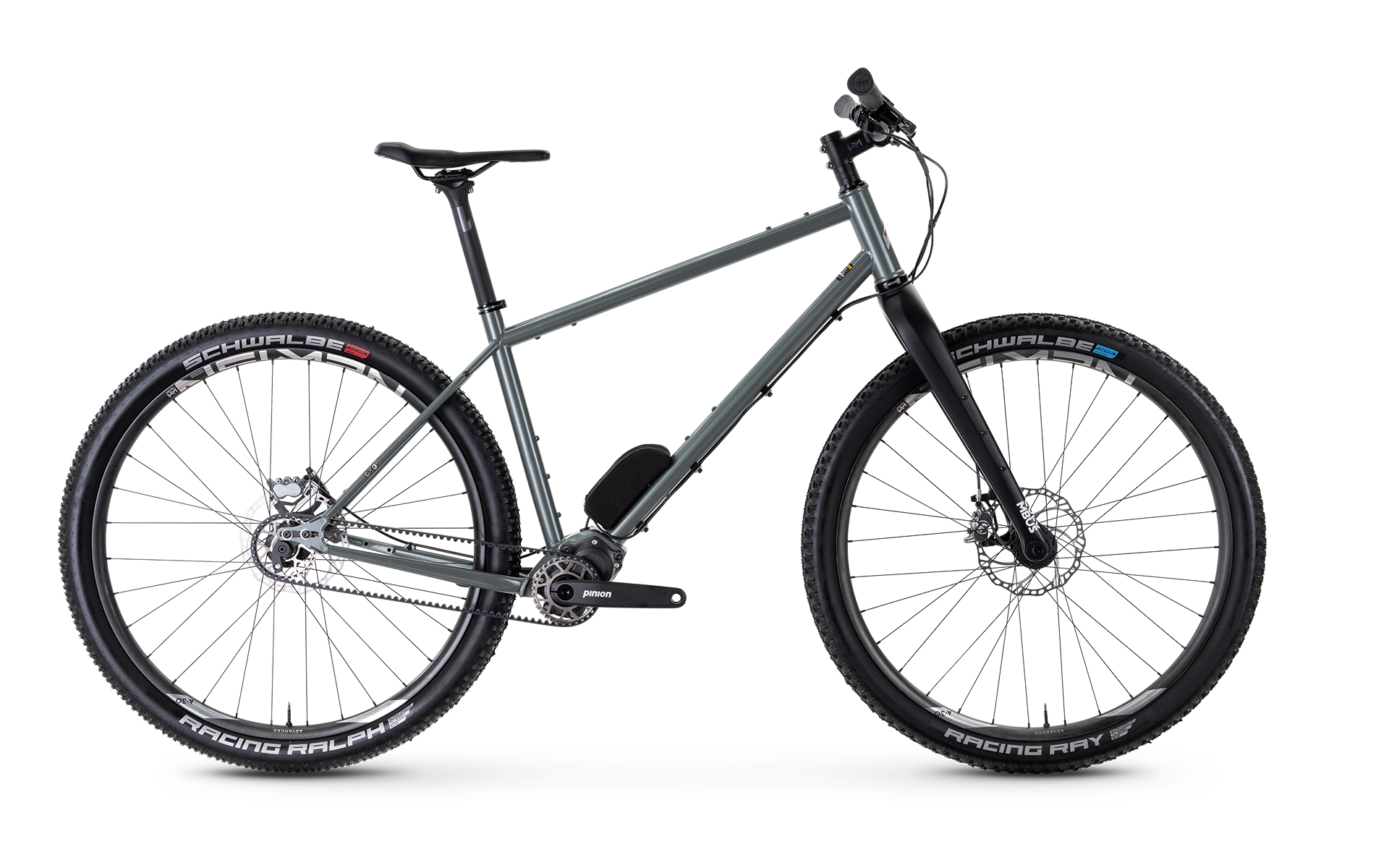

AX-1200
Pinion Smart Shift 12-speed / Disc / Gates
A for Adventure - with the new AX series we are pushing our previous boundaries
A for Adventure - with the new AX series, we present the ultimate adventure bikes! Whether gravel paths in the Lüneburg Heath or challenging single trails in the Rocky Mountains, the Adventure series is perfectly equipped for almost any terrain.
Where the bikes in our TX or GX series reach their off-road limits, the particularly robust, all-terrain AX series is a useful addition to our portfolio of high-quality touring and bikepacking bikes. Thanks to the extremely low-maintenance drive concept with Pinion gearbox and Gates Carbon Drive belt as well as a high-quality Reynolds tube set from England, these bikes are durable and reliable companions.
With generously dimensioned brakes and numerous mounting options for cup holders, anything cages or bikepacking equipment, the AX series is the perfect companion for big and small adventures off the beaten track.
- Framesize
- Unisex 29": 39, 43, 47, 51 cm
- Frame
- Reynolds 725 Chrome-Moly, double butted, Disc, with Pinion-Interface
- max load
- 140 kg
- Colour
- iced sage glossy
- Head set
- Acros AZX-228, 1 1/8"-1,5", External Cup
- Fork
- Columbus Futura Adventure 29", thru-axle 15 x 110 mm, Boost,
- Shifting System
- Pinion C1.12i Smart Shift (max. rider weight 110 kg)
- Derailleur
- - - -
- Brakes
- Magura MT7 4-pistons (front 180 mm / rear 180 mm) disc
- Headlights
- - - -, - - - LUX
- Rear light
- - - -
- Carriers
- - - -
- Saddle
- SQLab 610
- Seat post
- Humpert Ergotec Skalar, patent, aluminum, 27,2 mm, 400 mm, safety level 6
- Pedals
- Marwi SP-102, Flat Pedal, aluminum, black
- Kickstand
- - - -
- Chainguard
- - - -
- Mudguard
- , - - -
- Weight
- 11,5 kg
- Stem
- Newmen Evolution SL 318.4, aluminum, 70 mm, 31,8 mm
- Handlebars
- Newmen Advanced SL, Carbon, 760 mm, Rise 25 mm
- Grips
- SQLab 710, with clamp
- Shift lever
- Pinion e-shift, Trigger
- Brake lever
- Magura MT7
- Tires
- Schwalbe Racing Ray 60-622 (front), Racing Ralph 60-622 (rear), Addix Speed
- Spokes
- Niro 2,0 mm black
- Front Hub
- Pinion H3F TA15 Boost, 15 x 110 mm, 32 holes
- Rear Hub
- Pinion H3FR X-12 Boost, 12 x 148 mm, 32 holes
- Sprocket
- Gates CDX belt drive, 30 teeth
- Chain
- Gates CDX-drive belt
- Inner bearing
- Pinion C1.12i Smart Shift
- Crank wheel set
- Pinion aluminum, with Gates CDX drive belt 32 teeth
- Gear ratio (front:rear)
- 32 teeth : 30 teeth
Technical changes and changes in equipment reserved, color deviations possible.
- Unisex 29" 39 cm / 43 cm / 47 cm / 51 cm
iced sage glossy
Smart – Pinion C1.12i
Smart, schnell, ergonomisch – 12 präzise und gleichmäßig abgestufte Gänge werden elektronisch per Daumenschalter geschaltet.
Das extrem wartungsarme und langlebige System glänzt mit einer Gesamt-Bandbreite von 600 %.
Magura MT Scheibenbremsen
Egal ob Testliebling MT 7 am AX-1200 oder die nach unseren Spezifikationen konfigurierte MT Thirty am AX-1000 – mit einer 4-Kolben Bremsanlage und 180 mm Scheiben von Magura behältst Du in jeder Situation die unter Kontrolle.
Pack was drauf.
Unsere Adventure-Bikes der AX-Serie sind im wahrsten Sinne des Wortes „BikePacking“ ready.
Zahlreiche Ösen an Rahmen und Gabel bieten clevere Aufnahmen für Gepäckträger, Flaschenhalter, Anything Cages und mehr.
Gates Riemenantrieb
Kein Rost, keine Schmierung, leicht zu reinigen? Saubere Sache. Wir kombinieren das 12-Gang Pinion Getriebe mit einem bewährten Gates Antriebsriemen.
Mit dieser Kombination bietet das AX-Bike einen extrem wartungsarmen Antriebsstrang.
