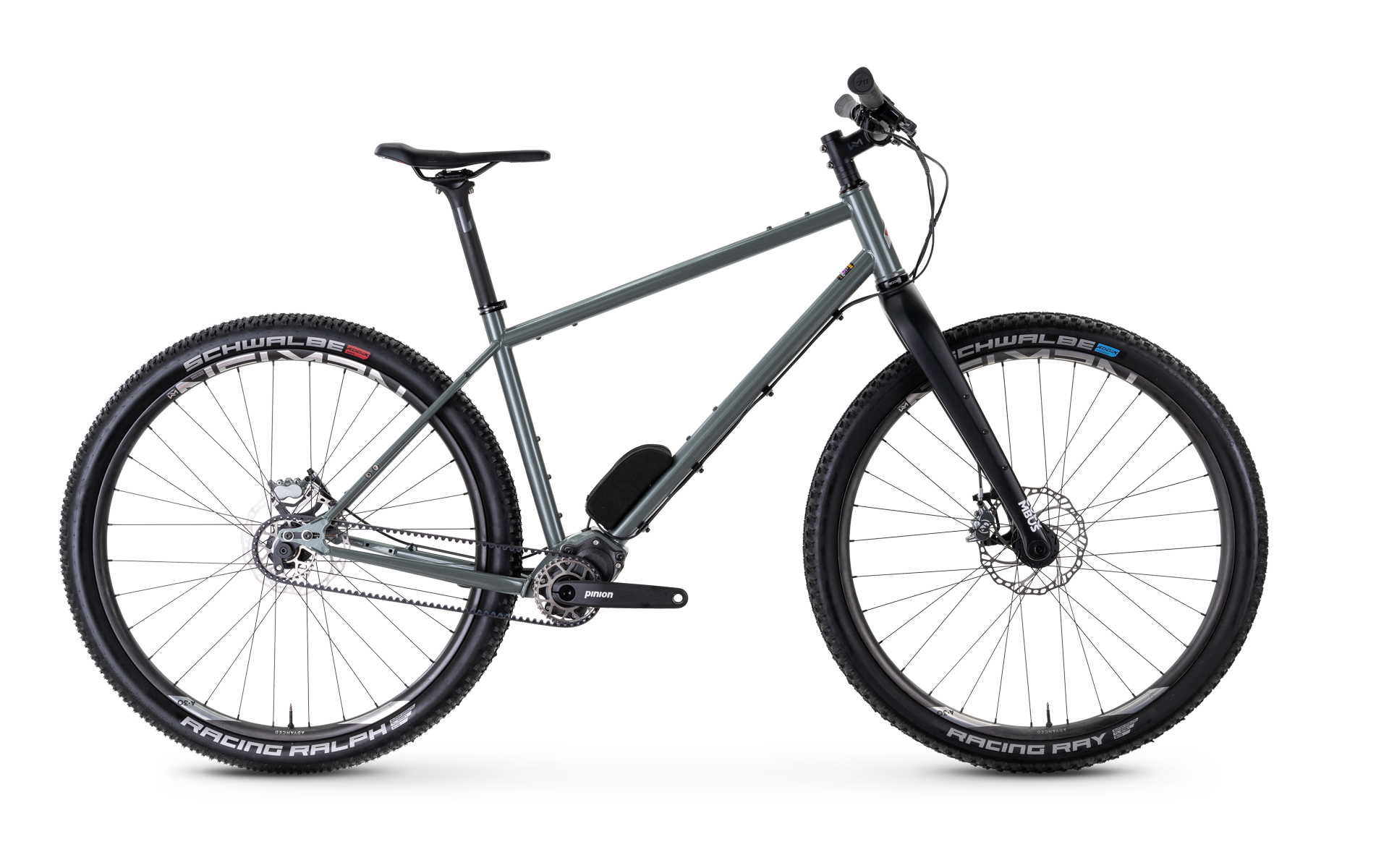

AX-1200
Pinion Smart Shift 12-speed / Disc / Gates
For anyone looking for great adventure, we have equipped the TX-1200 with a virtually maintenance-free and exceptionally durable drive combination of Gates belt drive and Pinion P1.18 shifter, making for a truly excellent combination. That is also how VSF (Verbund Service und Fahrrad e. V.) sees it – they have awarded Pinion's gearboxes with two test seals:
In further development, the TX-1200 was optimised with 27.5" wheels and a hydraulic disc brake.
In combination with a steel frame handcrafted in proven manufacturing quality, along with high-quality, tried and tested components, we offer globetrotters an expedition bike that sets new standards in terms of reliability, load capacity, cycling characteristics, and comfort. Discover for yourself the unique features of this exemplary model from vsf fahrradmanufaktur. You will also find more information on our TX-1200 special page.
The TX-1200, powered by Pinion. At home on the road.
In addition to the standard colors, this model is available in other special colors for an additional fee. More detailed information about the costs of color customisation is available from your dealer.
You can find all the information about our color world here.
- Framesize
- Unisex 29": 39, 43, 47, 51 cm
- Frame
- Reynolds 725 Chrome-Moly, double butted, Disc, with Pinion-Interface
- max load
- 140 kg
- Colour
- iced sage glossy
- Head set
- Acros AZX-228, 1 1/8"-1,5", External Cup
- Fork
- Columbus Futura Adventure 29", thru-axle 15 x 110 mm, Boost,
- Shifting System
- Pinion C1.12i Smart Shift (max. rider weight 110 kg)
- Derailleur
- - - -
- Brakes
- Magura MT7 4-pistons (front 180 mm / rear 180 mm) disc
- Headlights
- - - -, - - - LUX
- Rear light
- - - -
- Carriers
- - - -
- Saddle
- SQLab 610
- Seat post
- Humpert Ergotec Skalar, patent, aluminum, 27,2 mm, 400 mm, safety level 6
- Pedals
- Marwi SP-102, Flat Pedal, aluminum, black
- Kickstand
- - - -
- Chainguard
- - - -
- Mudguard
- , - - -
- Weight
- 11,5 kg
- Stem
- Newmen Evolution SL 318.4, aluminum, 70 mm, 31,8 mm
- Handlebars
- Newmen Advanced SL, Carbon, 760 mm, Rise 25 mm
- Grips
- SQLab 710, with clamp
- Shift lever
- Pinion e-shift, Trigger
- Brake lever
- Magura MT7
- Tires
- Schwalbe Racing Ray 60-622 (front), Racing Ralph 60-622 (rear), Addix Speed
- Spokes
- Niro 2,0 mm black
- Front Hub
- Pinion H3F TA15 Boost, 15 x 110 mm, 32 holes
- Rear Hub
- Pinion H3FR X-12 Boost, 12 x 148 mm, 32 holes
- Sprocket
- Gates CDX belt drive, 30 teeth
- Chain
- Gates CDX-drive belt
- Inner bearing
- Pinion C1.12i Smart Shift
- Crank wheel set
- Pinion aluminum, with Gates CDX drive belt 32 teeth
- Gear ratio (front:rear)
- 32 teeth : 30 teeth
Technical changes and changes in equipment reserved, color deviations possible.
- Unisex 29" 39 cm / 43 cm / 47 cm / 51 cm
iced sage glossy
Pinion C1.12i Smart Shift
Smart, schnell, ergonomisch – 12 präzise und gleichmäßig abgestufte Gänge werden elektronisch per Daumenschalter geschaltet.
Das extrem wartungsarme und langlebige System glänzt mit einer Gesamt-Bandbreite von 600 %.
Magura MT Scheibenbremsen
Egal ob Testliebling MT 7 am AX-1200 oder die nach unseren Spezifikationen konfigurierte MT Thirty am AX-1000 – mit einer 4-Kolben Bremsanlage und 180 mm Scheiben von Magura behältst Du in jeder Situation die unter Kontrolle.
